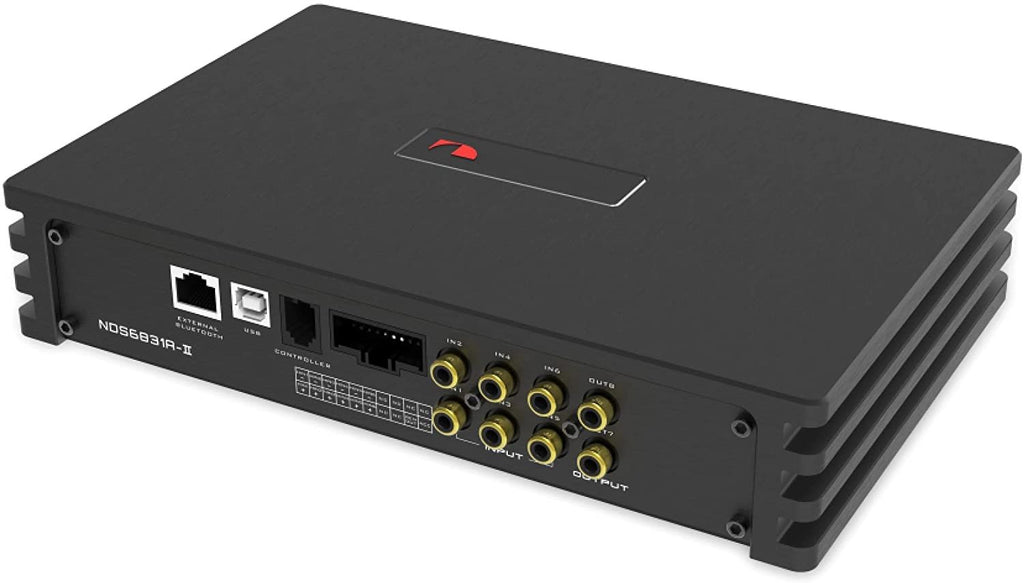

Nakamichi NDS6831A-II Car Stereo Digital Signal Processing Power Car Amplifier DSP 6 Channels High 2 Channels Low Level Input External Bluetooth Optical

Specifications:

• Dynamic Range(RCA Input): ≥100dB

• S/N (RCA Input): ≥97dB

• THD: ≤0.05%

• Frequency Response: 20Hz ~ 20kHz

• Input Impedance High Level: 240Ω

• Low Level Output Impedance: 100Ω

• Signal Input Range: RCA: 6.5Vpp; High Level: 28Vpp

• Signal Output Range: RCA: 7.5Vpp; Amplifier Maximum Power : 4 Channels x 50W + 2 Channels x 120W, Bridging 1 x 300W

• Working Temperature: -20~ 70 °C

• Power: DC 9V~16V

• REM Input: High Level Input Signal: HIN1+ / HIN1- or ACC control cable

• REM Output: +12V Start up Voltage Output

• Standby Power: 0.1W

• Net Weight: Approx. 2.3kg

• Product Dimension (L X W X H): 246 x 140 x 48 (mm)

• Input Type: 6 Channels High Level, 6 Channels Low Level, External digital Bluetooth, Optical

• Output Type: 2 Channels Low Level, 1 ~ 4 Channels 50W, 5 ~ 6 Channels 120W

• Output Gain: Gain Range: Mute,-59dB ~ 6dB

• Output Signal EQ: 31 Band Equalizer Engine :



  1. Frequency range: 20Hz ~ 20kHz, 1Hz Accuracy


  2. Q value (slope): 0.404 ~ 28.85


  3. Gain: -12.0dB ~ +12.0dB, 0.1dB Accuracy



• Output Signal Crossover: Each output is equipped with multi-order high and low pass independent filters.



  1. Filtering types: Link-Ril, Butt
