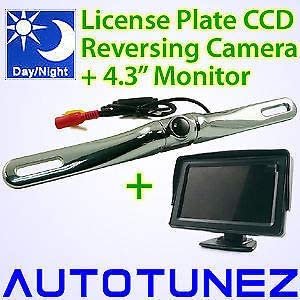

Car CCD Backup Reverse Rear Parking Camera + 4.3" Monitor Reversing Licence View (Polished Chrome)
Car CCD Backup Reverse Rear Parking Camera + 4.3" Monitor Reversing Licence View (Polished Chrome)
Out of stock
Ask about this productHave a question?
Full colour CCD sensor for crisp sisplayer during day or night.
Made from heavy duty solid brass to with stand the harshest conditions. Waterproof with IP67 protection rating.
4.3" Hight resolution digitel LCD monitor. Switches on automatically when it detects video signal for camera, and adjustable brightness, contrast, hue, saturation and sharpness level.
Support 2 cameras with 2 video-in port with 180 degree swivel stand.

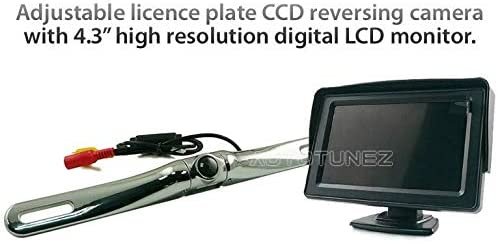

Adjustable license plate CCD reversing camera
| Image sensor | - Full colour CCD |
| TV system | - NTSC |
| Horizontal resolution | - 420 TV lines |
| Effective pixels | - 512 x 492 pixels |
| Optical size | - 1/4: 4.9 mm x 3.7 mm |
| Minimum illumination | - 1.0 lux/F=1.2 |
| Viewing angle | - 170 degree |
| Video output | - RCA connector, 1.0Vp-p/75Ω |
| Power consumption | - ≤ 200mA |
| Power supply | - DC 12V |
| Operating temperature | -20°C ~ 60°C, RH 95% max. |
| Storage temperature | -40°C ~ 68°C, RH 95% max. |
| Casing protection rating | - IP67 rating |
| Body | - Made from 100% heavy duty solid brass |
| Colour option | - Polished chrome or gun metal black chrome |
4.3" High resolution digital LCD monitor
Screen size : 4.3" (diagonal)
TV system : NTSC / PAL (auto switch)
Screen resolution : 480 x 272 pixels
Effective viewing area (H) x (V) : 95.04 mm x 53.86 mm
Gamut display : NTSC 60%
Power supply: DC 12V
Operating temperature : -20°C ~ 70°C
Storage temperature : -30°C ~ 80°C
