Apple CarPlay Android Auto For Subaru Impreza Forester USB MP3 MP4 Stereo Radio

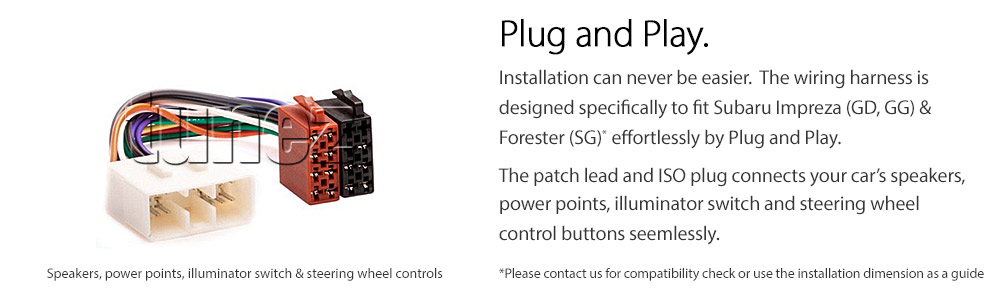

- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Subaru Impreza / Forester ISO plug directly
- No need to splice your factory fitted wires

- The Plug & Play wiring harness connects the steering wheel control wire to your Subaru Impreza / Forester plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual

CarPlay is compatible with these iPhone models:
iPhone 13 (all series)
iPhone 12 (all series)
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 11
iPhone XS
iPhone XS Max
iPhone XR
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone SE
iPhone 5s
iPhone 5c
iPhone 5
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.

- Not all USB cables will work with head unit
- If you're having trouble connecting to CarPlay try using a high-quality USB cable

Here are some tips to finding the best USB cable for CarPlay:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If CarPlay used to work properly and no longer does, replacing your USB cable will likely fix this

- An Android phone running Android 5.0 and up with a data plan
- For best performance, we recommend Android 6.0 and above
- You can check your phone’s software version by looking at the About Device section under Settings
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.

- Not all USB cables will work with head unit
- If you're having trouble connecting to Android Auto try using a high-quality USB cable

Here are some tips to finding the best USB cable for Android Auto:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If Android Auto used to work properly and no longer does, replacing your USB cable will likely fix this

Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA

Capacitive touch

- Large 7-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish

- 32-bit True Colour
- 800 x 480 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB reader
- Contrast ratio 500:1
- Brightness 500 cd/m2

2 USB ports
- Front USB 1.0A. Connect your Apple or Android mobile devices to the front USB port to access Apple CarPlay or Android Auto. Also charges your phone while it is connected.
- Rear USB 0.5A. Comes with 1-meter USB cable. Suitable to read USB thumb drive (maximum 64GB) to play your favourite media e.g. MP3 music and MP4 videos.
- Both USB ports do NOT support external hard disk, iPod or tablet

Supports up to 64GB

- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in USB mode only

- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region

- Supports Bluetooth 4.0 and below
- Comes with Enhanced Data Rate (EDR)
- High quality Bluetooth receiver

Make and receive phone calls using Bluetooth receiver

- Equipped with 2 microphones
- External microphone with clip. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit

- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop

Comes with 6 attractive preset wallpapers

- Choose from 7 different backlit illumination colours (i.e. white, green, blue, red, yellow, cyan and magenta) to match your car's instrument panel
- You may rotate these 7 colours in a seamless transition to create a colourful and cheerful ambience

- Intelligent Reversing Camera Mechanism (IRCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad

- Time Alignment audio settings
- Subwoofer control settings
- Built-in 16-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Jazz, Pop, Rock and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Language (English only)

- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model

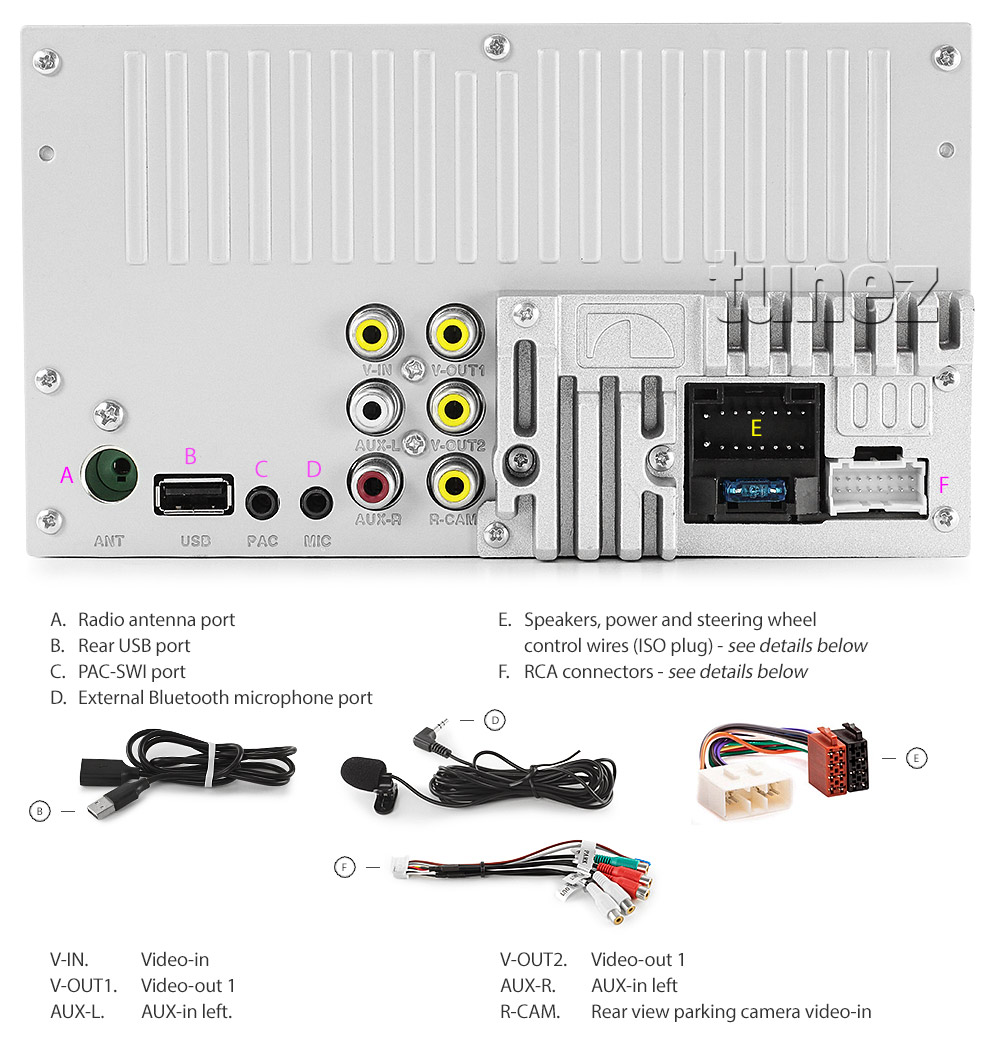

- 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer)
- 2 x Video output
- 1 x Parking/reversing camera input
- 1 x Video input
- 2 x Audio input (Right and left)

Highly conductive rear heat sink keeps the unit cool

Built-in high fidelity amplifier with maximum power output of 50W x 4

4V/10,000Ω

≤600Ω

4-8Ω

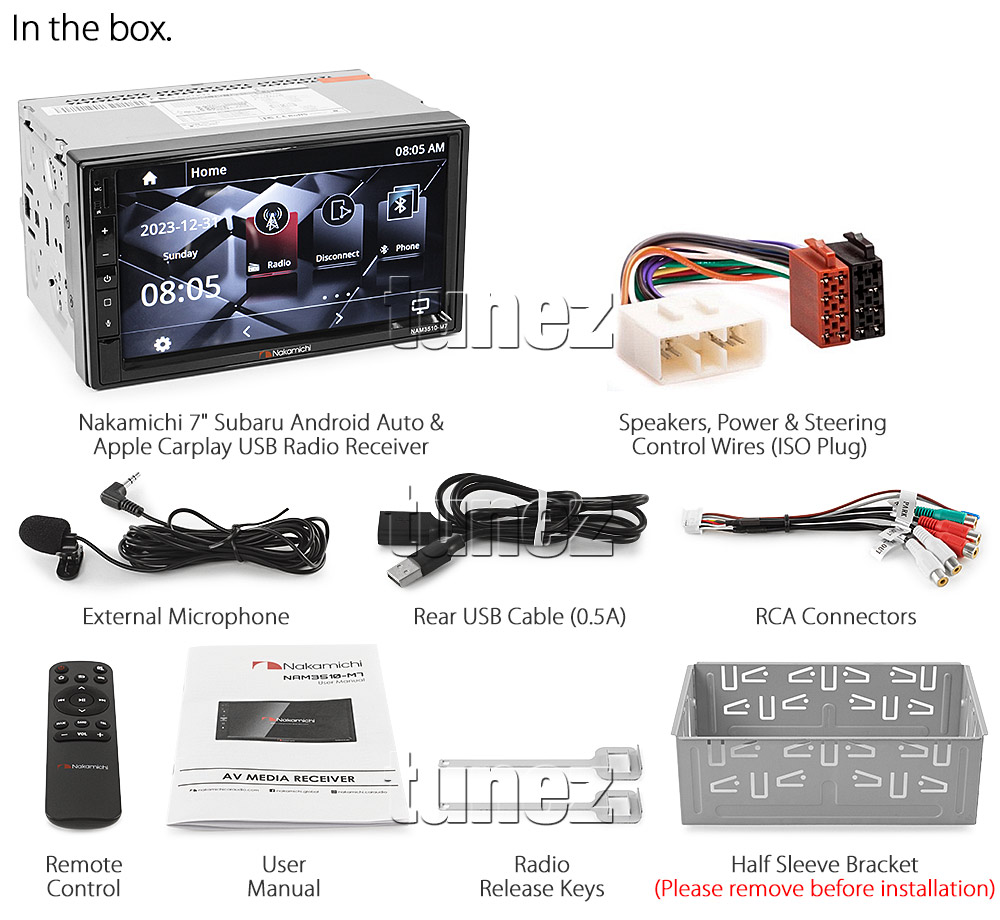

- Matching Subaru Impreza / Forester wiring harness (ISO plugs)
- External Bluetooth microphone (2-meter)
- Rear USB connector (1-meter)
- Remote control
