Apple CarPlay Android Auto For Mazda 3 BK 1st Gen 2003-2008 Radio Stereo

- The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Mazda 3 ISO plug directly
- No need to splice your factory fitted wires

- The Plug & Play wiring harness connects audio steering wheel control wires to your Mazda 3 ISO plug directly
- You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit
- Please follow the simple on-screen learning procedure or refer to the user manual

- Designed for Mazda 3 (1st Generation, BK series) Year 2003-2008
- Minor modification to the dash is required for a flush fitting
- Black colour only

CarPlay is compatible with these iPhone models:
iPhone 11 Pro
iPhone 11 Pro Max
iPhone 11
iPhone XS
iPhone XS Max
iPhone XR
iPhone X
iPhone 8
iPhone 8 Plus
iPhone 7
iPhone 7 Plus
iPhone 6s
iPhone 6s Plus
iPhone 6
iPhone 6 Plus
iPhone SE
iPhone 5s
iPhone 5c
iPhone 5
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.

- Not all USB cables will work with head unit
- If you're having trouble connecting to CarPlay try using a high-quality USB cable

Here are some tips to finding the best USB cable for CarPlay:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If CarPlay used to work properly and no longer does, replacing your USB cable will likely fix this

- An Android phone running Android 5.0 and up with a data plan
- For best performance, we recommend Android 6.0 and above
- You can check your phone’s software version by looking at the About Device section under Settings
Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.

- Not all USB cables will work with head unit
- If you're having trouble connecting to Android Auto try using a high-quality USB cable

Here are some tips to finding the best USB cable for Android Auto:
- Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions
- Make sure your cable has the USB icon
- If Android Auto used to work properly and no longer does, replacing your USB cable will likely fix this

Video format: MP4 / MKV / RMVB / AVI / DIVX / FLV / MPG
Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA

Does NOT come with CD player and SD card reader

Capacitive touch

- Super large 9-inch TFT LCD touchscreen
- 16:9 aspect ratio
- User friendly menu for ease of navigation
- 2 stage monitor dimming control function
- Automatically dims monitor when headlights are turned on
- Monitor 'Sleep' function, turns off monitor anytime you wish

- 32-bit True Colour
- 1024 x 600 pixels gives you sharp and crisp display
- Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1080 pixels via USB reader
- Contrast ratio 4,000:1
- Brightness 280cd/m²

- 2 rear USB ports
- USB 2.0A comes with 1-meter USB cable. Hence, you can place your USB thumb drive or phone in the glove compartment and keep your dashboard neat. Also charges your phone while it is connected.
- USB 0.5A is only 10cm. Please use own USB extension. Suitable to read USB thumb drive (maximum 128GB) to play your favourite media e.g. MP3 music and MP4 videos.
- Both USB ports do NOT support external hard disk, iPod or tablet

- Displays MP3 album art
- Compatible with ID3 tag for artist name, song title and album name
- Please contact us if you have any queries on ID3 tag
- This feature is available in USB mode only

- FM/AM tuner with Radio Data System (RDS)
- 30 present channels (18 FM & 12 AM)
- FM/AM frequencies menu option for all region

- Supports Bluetooth 3.0 and below
- High quality Bluetooth receiver

Make and receive phone calls using Bluetooth receiver

- Equipped with 2 microphones
- External microphone with clip. For best performance, place external microphone on steering wheel column
- Built-in microphone in head unit

- Wirelessly stream music to the stereo using your mobile phone that supports A2DP for e.g. all iPhone models
- Remotely control your mobile phone using the stereo's on-screen button i.e. play, next song, previous song and stop

- Intelligent Reversing Camera Mechanism (IRCM)*
- For e.g. upon detecting car in reverse gear, head unit automatically power up and goes into parking/reverse camera view mode
- For more features, kindly refer to IRCM features description mentioned earlier in this ad
- * Note: Works with Tunez optional reversing camera; for details, view optional items at the bottom of this ad

- Built-in 10-band graphic equaliser for better audio control
- Preset EQ settings (Classic, Jazz, Pop, Rock and Custom settings)
- Fader, balance, subwoofer, loud settings
- Adjustable video display (Brightness, colour and contrast settings)
- Language (English only)

- Amplifier remote turn on control (REM)
- Power antenna control
- Built-in RGB imaging for auto video adjustment
- Eco friendly and low power consumption model

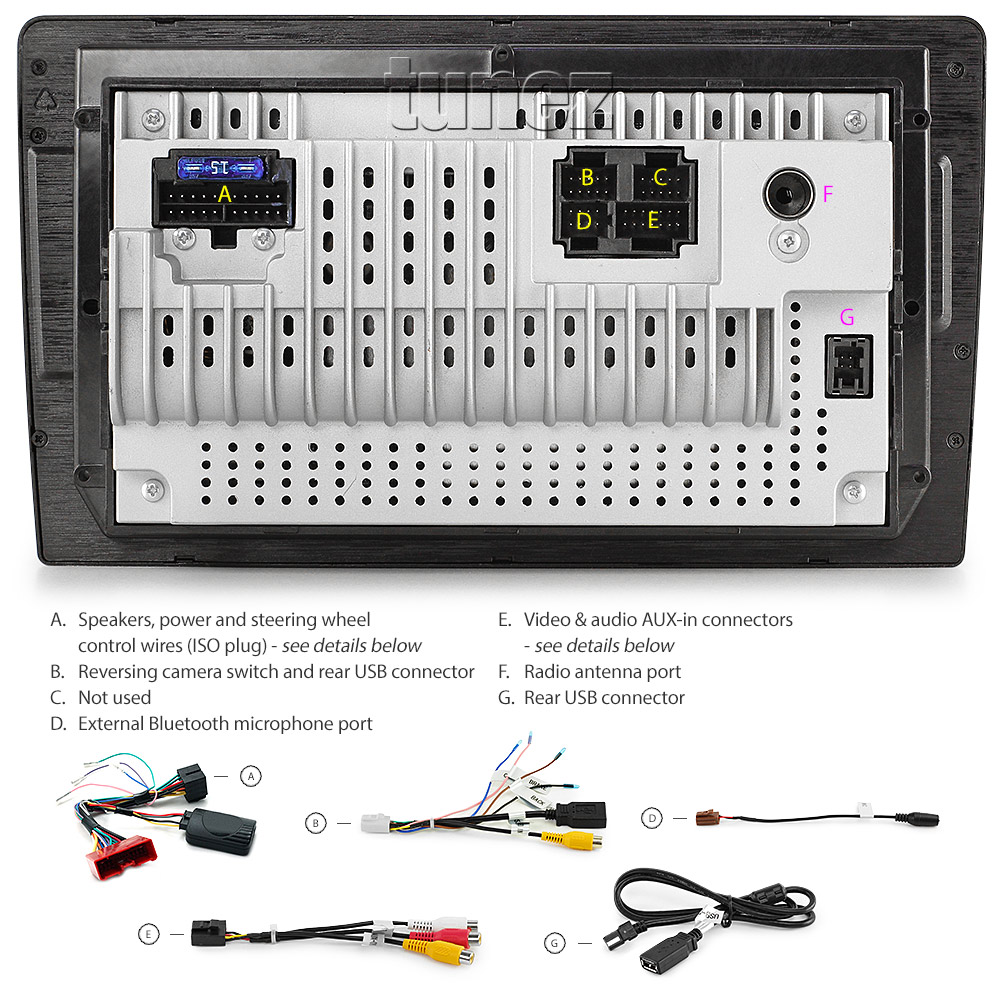

- 2 x Pre-out (Right & left)
- 1 x Video output
- 1 x Parking/reversing camera input
- 1 x Video input

Highly conductive rear heat sink keeps the unit cool

Built-in high fidelity amplifier with maximum power output of 25W x 4

100Ω

2Vrms (Max)

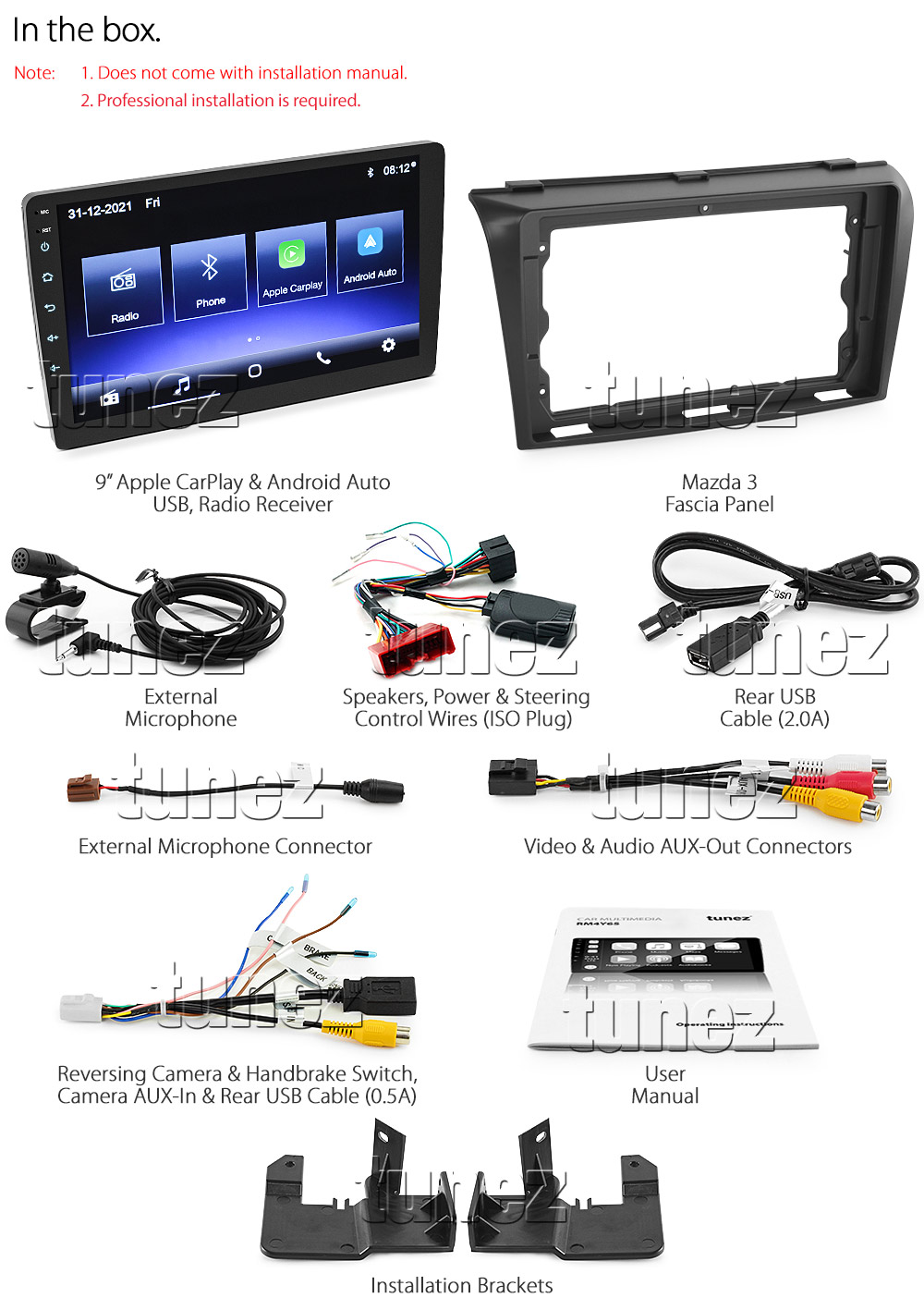

- Mazda 3 fascia kit, patch lead and ISO plugs
- External Bluetooth microphone (2-meter)
- Rear USB 2.0A connector (1-meter)
- Rear USB 0.5A connector (10cm)
