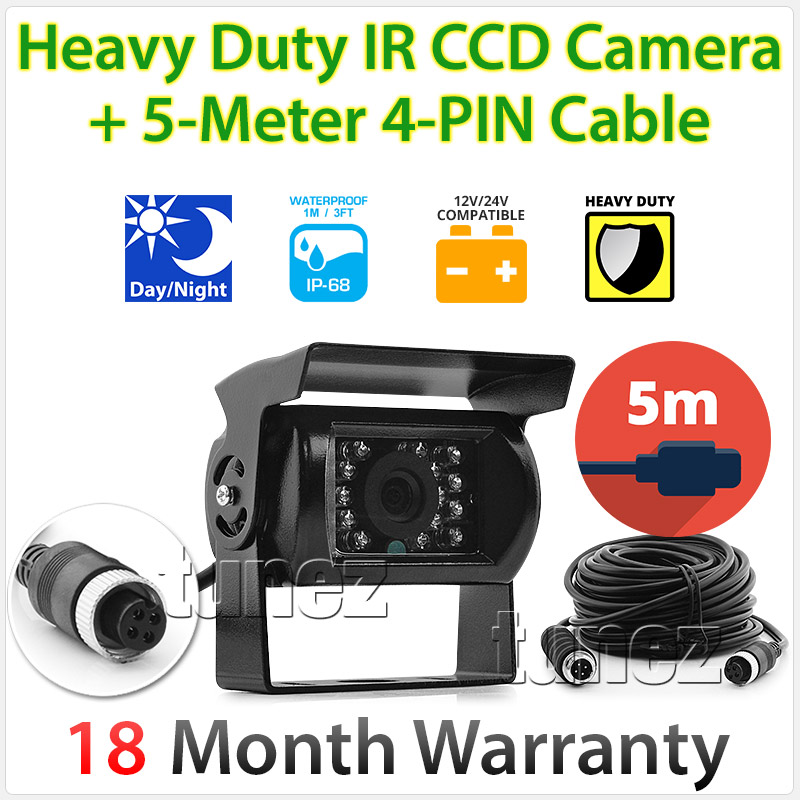

4-PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera + 5 Me

4-PIN Heavy Duty 12V 24V CCD IR Colour Reverse Reversing Camera + 5 Meter Cable

Brand: TUNEZ

Product Code: IRCAMP40605

Availability: In stock

$70.02

Description Reviews

IRCAM4P02 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified

IRCAM4P01 12V 24V DC 2 3 4 Channels Camera System Caravan Motorhome Truck Trailer Bus Car Bus Van Lorry Goods Parking Reversing Park Reverse Safety Camera Surveillance Sony Lense Lens CCD 18 LED Infrared Night Vision Day Pitch Black Condition Heavy Duty 18-Months Australian Warranty 7-inch Quad View Split Screen TFT LCD digital monitor 4-Pin Waterproof video cable industry standard IP68 Dustproof CE FCC Approved RoHS Compliant Certified

Features and description

Supports both 12V and 24V vehicles.

All buyers, kindly note:
• This camera only works with a monitor using 4PIN connector.
• Please ask installer to bench test monitor and cameras to ensure it is in working condition before installation.

Infrared CCD Camera

Image sensor	Full colour SONY^® CCD
Casing	Heavy duty alloy
Casing protection rating	- IP68 - Waterproof and dustproof - Submersible up to 1-meter (3-feet)
TV system	- NTSC format Note: Most of the monitors in the market today support both NTSC and PAL TV system format. If you need PAL version, kindly contact us.
Horizontal resolution	420 TV lines
Effective pixels	512 x 492 pixels
Optical size	1/3: 4.9 mm x 3.7 mm
Minimum illumination	- 1.0 lux/F=1.2 (0 lux with active infrared turned on) - Works in pitch black condition
Viewing angle	120 degree
Night vision	10 meters
Video output	4-Pin connector, 1.0Vp-p/75Ω
Power consumption	50-60 mA, maximum 300mA with infrared turned on
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, trailer, motorhome, etc. - Sourced from 7-inch monitor power adapter via 4-Pin connector
Operating temperature	-20°C ~ 60°C, RH 95% max.
Storage temperature	-40°C ~ 68°C, RH 95% max.

Industry standard 4-Pin cable

Housing and knurled nut	- Brass and nickel-plated - Suitable for all weather conditions
Waterproof	Using threaded fittings plug and socket ensures every connection is watertight
Internal housing	- Bakelite - Heat resistant and extremely durable
Insulation	- PVC - Provides good shielding from flame, moisture and corrosion resistant
Conductor	- Copper wire - IACS approved copper for higher conductivity and stable signal transmission - It also provides power supply to the cameras

Connectors and hardware

Accessories

- 1 unit of infrared CCD camera
- 1 unit 5-meter 4-Pin video cable
