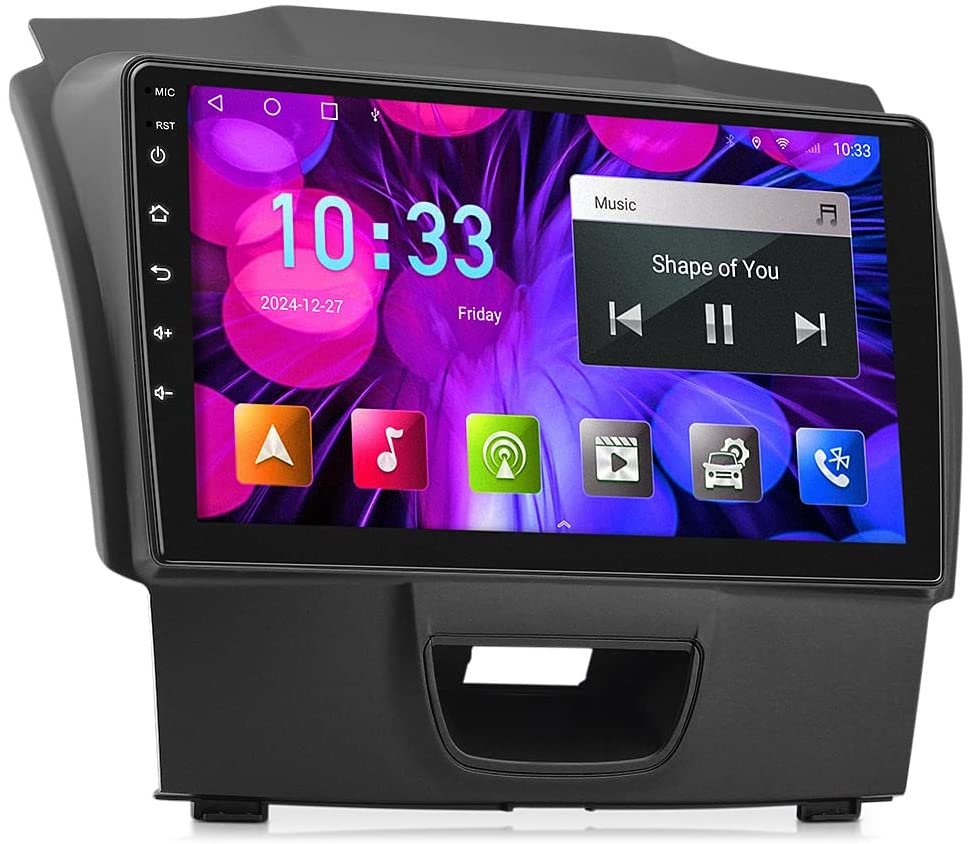

MyLink Replacement Model 9" Android Car MP3 Player For Holden Colorado RG 2012-2016 Stereo Radio Fascia

Mobile network

• Supports 4G LTE mobile network by using a mobile data SIM card.
• Streaming your favourite music and movie from Spotify and Netflix can never be easier.

GPS receiver

• SiRFatlasVI 1,200MHz receiver with 64 acquisition channels.

GPS module

• Detects satellite signal faster than standard GPS unit.
• Does not support Windows CE GPS software and map.
• Does not come with GPS software.
• You may download Waze or Google Map for navigation. Note: You will need to connect your 4G mobile data to this head unit via hotspot to use Waze or Google Map other mobile GPS application. Please do let us know if you need assistance to link your mobile phone to this head unit.
• Compatible with major Android based GPS software which (for e.g. OziExplorer, Tom Tom, iGO, etc.)
• If you have Android based OziExplorer/Hema off-road maps, you can run them on this unit

Dual-zone capability

• Dual-zone playback enables the driver to use GPS navigator for navigation while rear passengers watch video using headrest or roof mounted monitor simultaneously.
• Whenever there is GPS voice broadcast, front 2 speakers will give way to GPS voice and return back to music after broadcast. The rear 2 speakers are not affected in anyway.

Android Auto requirement.

Software version

• An Android phone running Android 5.0 and up with a data plan.
• For best performance, we recommend Android 6.0 and above.
• You can check your phone’s software version by looking at the About Device section under Settings Note: Does NOT connect wirelessly to head unit. Please use high-quality USB cable.

USB cable

• Not all USB cables will work with head unit.
• If you're having trouble connecting to Android Auto try using a high-quality USB cable.

Here are some tips to finding the best USB cable for Android Auto:

• Use a cable that is under 1.5 meter (5-feet) long and avoid using cable extensions.
• Make sure your cable has the USB icon.
• If Android Auto used to work properly and no longer does, replacing your USB cable will likely fix this.

Car specifications and technical guidance

Matching ISO plugs

• The Plug & Play feature connects the ACC, battery, ground, illuminator, speakers and steering wheel control wires to your Holden Colorado ISO plug directly.
• No need to splice your factory fitted wires.

Steering wheel control

• The Plug & Play wiring harness connects the steering wheel control wire to your Holden Colorado plug directly.
• You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit.
• Please follow the simple on-screen learning procedure or refer to the user manual.

Factory fitted head unit

Please ensure you have selected the correct aftermarket head unit to replace your factory fitted radio:

• Android Auto requirement.

If you are unsure how the factory fitted unit looks like, please refer to the compatibility chart at the top section of this ad.

Fascia kit

Designed for:

• Holden Colorado (2nd generation) Year 2012-2016. Minor modification to the dash is required for a flush fitting. Black colour only.

Post-installation Photos

Media

Compatible media

• Video format: MP4 / MKV / RMVB /AVI / DIVX / FLV / MPG
• Audio format: MP3 / AAC / WMA / WAV / FLAC / MKA

Does NOT come with CD player and SD card reader

Display

• 9-inch OLED touch screen display
• 16:9 aspect ratio, 32-bit True Colour, 1280 x 720 pixels gives you sharp and crisp display.
• Plays full high definition (FHD) movie files (e.g. MP4, MKV, RMVB, AVI) up to 1280 pixels via USB reader

USB reader

• 3 rear USB ports come with 1-meter USB cable. Hence, you can place your USB thumb drive in the glove compartment and keep your dashboard neat. Supports USB thumb drive only and up to 256GB. Does NOT support external hard disk, iPod or tablet.

Album art & ID3 tag

• Compatible with ID3 tag for artist name, song title and album name. Please do let us know if you have any queries on ID3 tag.
• This feature is available in USB mode only.

Analogue radio tuner

• FM/AM tuner with Radio Data System (RDS). 30 present channels (18 FM & 12 AM). FM/AM frequencies menu option for all region.

Connectors and Hardware

• Newly released aftermarket Colorado 2nd generation Year 2012-2016 super large 9-inch capacitive OLED touch screen display car multimedia radio receiver powered by proven Android 10 operating system.

• (CPU) 1.8 GHz ARM Cortex, 8 core processors (Octa). MediaTek and MiraVision technology. RAM: Samsung 4 GB LPDDR4 RAM, Internal storage 26 GB of free space for your music and video files Mobile network. Support 4G LTE mobile network by using mobile data SIM card. Stream your favorite music and videos. SiRFatlasVI 1200 MHz receiver with 64 acquisition channels. Faster Satellite Lock!!!

• Simply connect Android Auto smartphone to the head unit and take advantage of easier and more responsible access to navigation, music and phone apps which makes connected driving easier, safer and more enjoyable. Does NOT come with CD player and SD card reader.

• Steering wheel control: The Plug and Play wiring harness connects the steering wheel control wire to your Colorado plug directly. You are required to perform steering wheel control learning procedure via 'Settings' menu in order to map factory steering wheel control buttons to the head unit. Please follow the simple on-screen learning procedure or refer to the user manual.

Audio and visual (RCA)

• 5 x Pre-out (Front right, front left, rear right, rear left and subwoofer).
• 2 x Video output (optional, via USB port).
• 1 x Parking/reversing camera input.
• 1 x Front camera input
• 1 x Video input
• 2 x Audio input (Right and left)

Body design

• Newly designed body with connectors or ports face upright.
• This will ease installation especially in a tight area or cramp dashboard.

Cooling mechanism

• Highly conductive rear heat sink keeps the unit cool.

Sound system

• Built-in high fidelity amplifier with maximum power output 45W x 4 (4 Ohm).

Accessories

• Isuzu D-Max, MU-X/Holden Colorado fascia kit, patch lead and ISO plugs, 4G LTE antenna (2-meter), GPS antenna (3-meter), External Bluetooth microphone (2-meter), Rear USB connectors (2 ports, 1-meter each).
