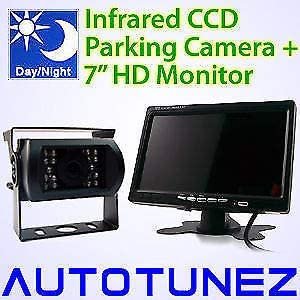

24v/12v CCD Reversing Camera Caravan Truck 7" Large Monitor Screen Par

24v/12v CCD Reversing Camera Caravan Truck 7" Large Monitor Screen Parking Car

Brand: TUNEZ

Product Code: IRCAM70WR

Availability: In stock

$143.94

Features and description

This set of nifty reversing camera kit/system is suitable for car, caravan, bus, van or even truck.

Fully supports 12V and 24V vehicles.

Infrared CCD Parking Camera

Image sensor	Full colour CCD
TV system	NTSC / PAL
Horizontal resolution	420 TV lines
Effective pixels	NTSC: 512 x 492 pixels PAL: 512 x 582 pixels
Optical size	1/3: 4.9 mm x 3.7 mm
Minimum illumination	1.0 lux/F=1.2 (0 lux with active infrared turned on; works in pitch black condition)
Viewing angle	120 degree
Night vision	10 meters
Video output	RCA connector, 1.0Vp-p/75Ω
Power consumption	50-60 mA, maximum 300mA with infrared turned on
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, etc.
Operating temperature	-20°C ~ 60°C, RH 95% max.
Storage temperature	-40°C ~ 68°C, RH 95% max.
Casing protection rating	IP67

7" High resolution digital LCD monitor

Screen size	7" (diagonal)
TV system	NTSC / PAL (auto switch)
Screen resolution	800 x 480 pixels
Effective viewing area	(H) x (V) : 156 mm x 88 mm
Gamut display	NTSC 60%
Power supply	- DC 12V ~ 24V - Suitable for car, caravan, bus, van, truck, etc.
Operating temperature	-20°C ~ 70°C
Storage temperature	-30°C ~ 80°C
