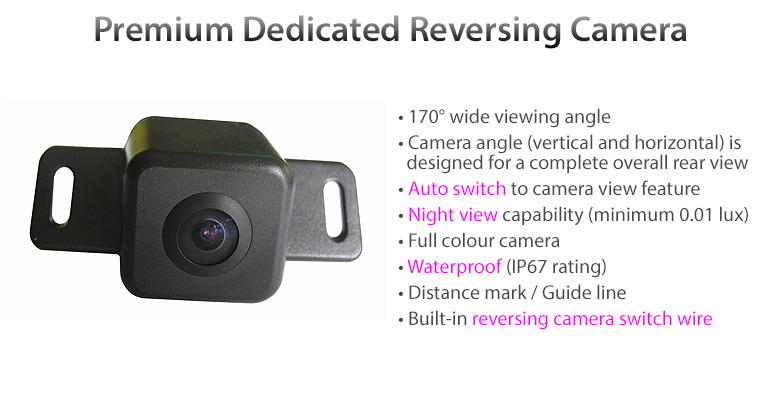

This is a set of high quality dedicated reversing camera.
Tailor made for your car with fine workmanship, it has beautiful rounded curves and very easy to install. Being a dedicated camera, it gives your car rear view capability while maintaining the factory look and feel.
Made of durable optical lense, it is waterproof, dustproof and shockproof. Even after washing your car the lens will stay clean and clear.
The lens is made of digital fill-ray technology, with that night vision is achieved without the need for infra-red LED; it provides clear images during day and night.
It also has 170° wide viewing angle, providing intuitive and clear rear view.
Compatibility
| Make and model |

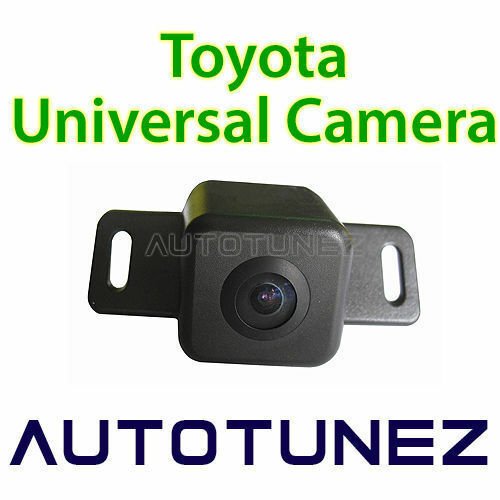

Fits most Toyota car models (Drilling of screw holes is needed)
Note: Please refer to installation dimension shown below to check for fitting to your number plate light slot before purchasing.
|
| Installation dimension |
 |
Specification
| Image sensor |
CMOS MT9V136 1/4”
|
| TV system |
- NTSC TV System
- Note: Please check and confirm your monitor is NTSC compatible, contact us if you need PAL TV system
|
| Video output connector |
- CVBS (Composite video cable) i.e. standard RCA type connector
- Note: Please check and make sure your head unit/display has RCA type video-in port to work with this camera. Some factory fitted head unit/display does not have RCA type of video-in port
|
| Effective pixels |
680 x 512 pixels
|
| TV line |
480 TV Line
|
| Minimum Illumination |
0.01 Lux
|
| Lens |
- Reinforced glass
- Thickness: 1.8mm
|
| Viewing angle |
Wide 170°
|
| Shutter speed |
(N)1/60-1/100000 (P)1/50-1/100000 second
|
| Operating voltage |
DC 12V ± 15%
|
| Operating temperature |
- (-20°C) to +85°C
- RH95% max
|
| Waterproof index |
IP67
|
| Data rate |
27 Mb/s
|
Accessories
| In-the-box |
- Dedicated reversing camera

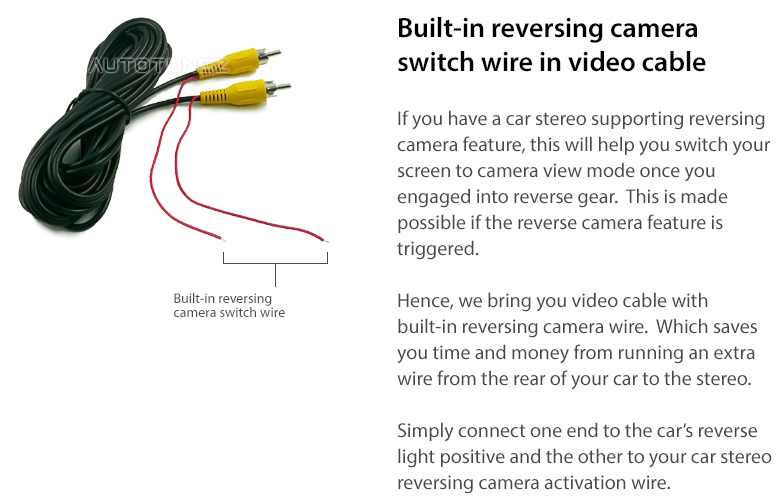

- 5 meter RCA video cable with built-in camera switching control wire (for ease of installation, saves time and money from running an extra wire from rear to the head unit/display)
- Power supply wire
|
|
